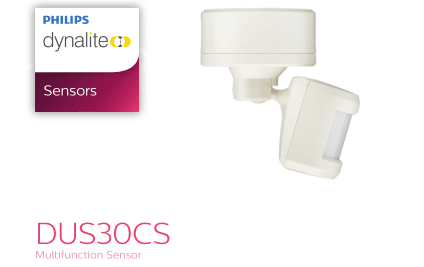

DUS30CS
Multifunction Sensor
Wall/ceiling mount 30° multifunction sensor
The DUS30CS is wall or ceiling mountable multifunction sensor that
combines motion detection (PIR), infrared remote control reception (IR)
and ambient light level detection (PE) into one device in applications
such as offices, lecture theaters and homes.
Manufactured with an IP54 rating, the DUS30CS is resistant to dust
and splashing, making it suitable for use in both indoor and sheltered
outdoor areas
DUS30CS
Wall/ceiling mount 30° multifunction sensor
• Motion detection feature — Detects the presence
or absence of motion and adjusts lights accordingly.
The sensor has a 30° scan pattern with flexible angle
adjustment.
• Ambient light level regulation — In applications
where it is necessary to maintain even lighting, the PE
function reads ambient levels and adjusts artificial light
accordingly.
• Infrared receive capability — Manually adjust light levels
using a hand-held remote control, via the inbuilt IR
receive sensor.
• Daylight harvesting mode — Delivers automatic energy
savings.
• Multiple mounting options — and can be surface-
mounted (wall/ceiling), or partially recessed (ceiling only)
using the supplied junction box or butterfly clips.
• IP54 rating — Dust- and splash-resistant housing
allows installation in a variety of indoor and outdoor
applications..
|
