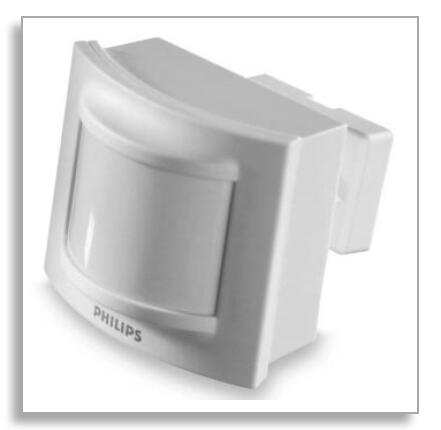

Long-range high bay DALI network sensor

The DUS30-LHB-DALI is a multi-function sensor
that combines motion detection (PIR) and
ambient light level detection (PE) in one device.
The sensor uses the DALI protocol for power
and communications to a network control
system, eliminating the need for additional
network field wiring.
• The sensor is fully compatible with a Philips
Dynalite DALI MultiMaster controller, such as
the DDBC120-DALI.

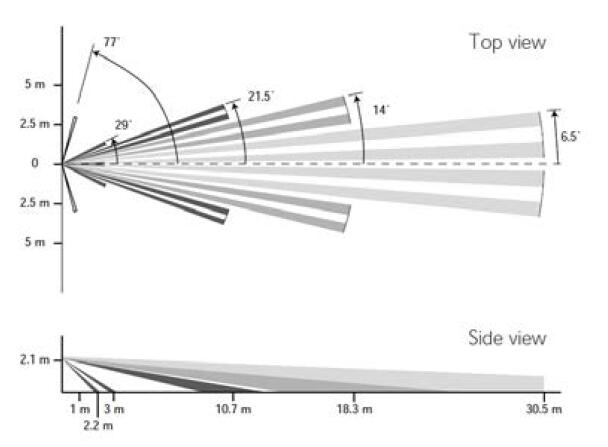

• The sensor detects motion within the
scanned area, triggering a programmed action.
• The sensor detects ambient light levels,
allowing it to detect dawn and dusk. The
system then automatically sets the lighting
level
• The IR receiver enables you to sign in to the
network system.
• When used in conjunction with networked
open loop day lighting sensor, daylight
harvesting allows you to use natural light to
your advantage.
• Additional networking advantages include
reporting and monitoring software tools.

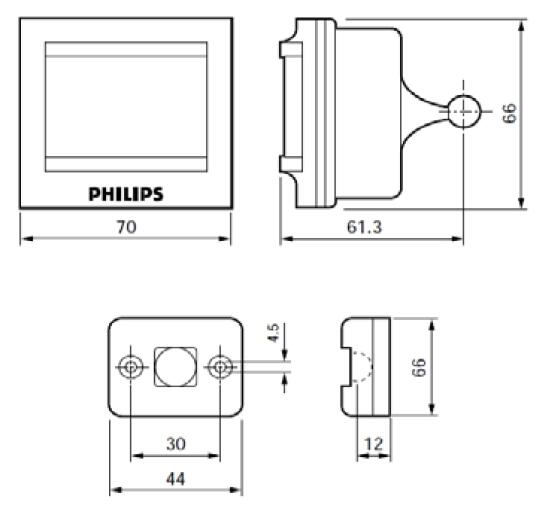

• The directional wall-mounting block allows
for sensors to be easily mounted and
directed to the required area.
For detailed product information, please
refer to the product information pages at
www.lighting.philips.com/dynalite
