DUS90-AHB-DALI
发布时间:2018-04-20           浏览量:720 次

DUS90-AHB-DALI

The DUS90-AHB-DALI is a multi-function
sensor that combines motion detection (PIR)
and ambient light level detection (PE) in one
device. The sensor uses the DALI protocol
for power and communications to a network
control system, eliminating the need for
additional network field wiring.
• The sensor is fully compatible with a Philips
Dynalite DALI MultiMaster controller, such as
the DDBC120-DALI.

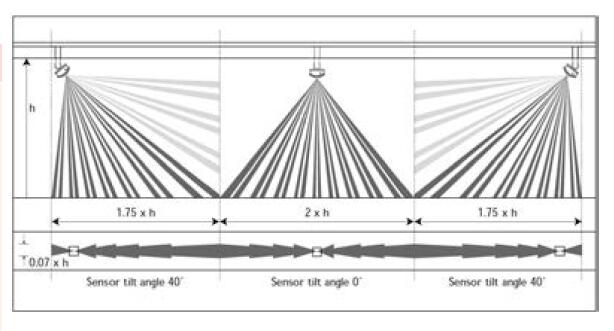

• The sensor detects motion within the
scanned area, triggering a programmed action.
• The sensor detects ambient light levels,
allowing it to detect dawn and dusk. The
system then automatically sets the lighting
level
• The IR receiver enables you to sign in to the
network system.
• When used in conjunction with networked
open loop day lighting sensor, daylight
harvesting allows you to use natural light to
your advantage.
• Additional networking advantages include
reporting and monitoring software tools.
• The directional wall-mounting block allows
for sensors to be easily mounted and
directed to the required area.
• The optional mounting swivel bracket
allows the sensor to be used with the
Philips TTX400 trunking system. (Requires
ZTX400MB-MDU which is sold separately.)
